VST was developed by Steinberg Media Technologies in 1996. It creates a complete, professional studio environment on the PC or Mac.[1]
  1. OBS Studio is open-source software, which means that almost anyone can develop add-ons and plugins for it. For streamers, this can be incredibly helpful. Sometimes a streamer needs additional functionality that isn’t built directly into OBS Studio, so the open-source functionality of OBS Studio lends itself well to this need.
  2. The Reaper plugins I showed you are available for download from this l. Hey there Youtube, In this video I explain what VST are and how to add them in OBS 18. Skip navigation.
  3. Download all the best free VST plugins (plug-ins) and new audio production software for music production. The best free vst sound effects, virtual instruments, synthesizers, and freeware software.

For some reason, OBS won't recognize my VST plugins no matter where I put them. I have OBS and the plugins on my D: drive, and I've tried. Keeping the VSTs in their original install folder (on my computer, D: Programs VSTs).

Virtual Studio Technology (VSTDeath metal guitar vst free. ) is an audio plug-in software interface that integrates software synthesizers and effects units into digital audio workstations. VST and similar technologies use digital signal processing to simulate traditional recording studio hardware in software. Thousands of plugins exist, both commercial and freeware, and many audio applications support VST under license from its creator, Steinberg.

Overview[edit]

VST plugins generally run within a digital audio workstation (DAW), to provide additional functionality, though a few standalone plugin hosts exist which support VST. Most VST plugins are either instruments (VSTi) or effects (VSTfx), although other categories exist—for example spectrum analyzers and various meters. VST plugins usually provide a custom graphical user interface that displays controls similar to physical switches and knobs on audio hardware. Some (often older) plugins rely on the host application for their user interface.

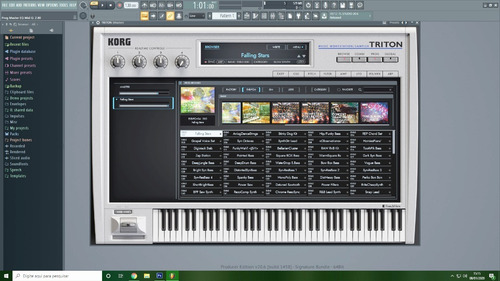

VST instruments include software simulation emulations of well-known hardware synthesizers and samplers. These typically emulate the look of the original equipment as well as its sonic characteristics. This lets musicians and recording engineers use virtual versions of devices that otherwise might be difficult and expensive to obtain.

VST instruments receive notes as digital information via MIDI, and output digital audio. Effect plugins receive digital audio and process it through to their outputs. (Some effect plugins also accept MIDI input—for example, MIDI sync to modulate the effect in sync with the tempo). MIDI messages can control both instrument and effect plugin parameters. Most host applications can route the audio output from one VST to the audio input of another VST (chaining). For example, the output of a VST synthesizer can be sent through a VST reverb effect.

History[edit]

Steinberg released the VST interface specification and SDK in 1996. They released it at the same time as Steinberg Cubase 3.02, which included the first VST format plugins: Espacial (a reverb), Choirus (a chorus effect), Stereo Echo, and Auto-Panner.[2]

Steinberg updated the VST interface specification to version 2.0 in 1999. One addition was the ability for plugins to receive MIDI data. This supported the introduction of Virtual Studio Technology Instrument (VSTi) format plugins. VST Instruments can act as standalone software synthesizers, samplers, or drum machines.[3]

Neon[4] was the first available VST Instrument (included with Cubase VST 3.7). It was a 16-voice, 2-oscillator virtual analog synthesizer.[3]

In 2006, the VST interface specification was updated to version 2.4. Changes included the ability to process audio with 64-bit precision.[5] A free-software replacement was developed for LMMS that would be used later by other free-software projects.[6][7]

VST 3.0 came out in 2008. Changes included:[8]

  • Audio Inputs for VST Instruments
  • Multiple MIDI inputs/outputs
  • Optional SKI (Steinberg Kernel Interface) integration

VST 3.5 came out in February 2011. Changes included note expression, which provides extensive articulation information in individual note events in a polyphonic arrangement. According to Steinberg, this supports performance flexibility and a more natural playing feel.[9]

In October 2011, Celemony Software and PreSonus released Audio Random Access (ARA), an extension for audio plug-in interfaces, such as VST, allowing greater integration between audio plug-ins and DAW software.[10]

In September, 2013, Steinberg discontinued maintenance of the VST 2 SDK. In December, Steinberg stopped distributing the SDK.[11] The higher versions are continued.

VST 3.6.7 came out in March, 2017. It includes a preview version of VST3 for Linux platform, the VST3 part of the SDK gets a dual license: 'Proprietary Steinberg VST3' or the 'Open-source GPLv3'.

As VSTi virtual instrument technology was under development at Steinberg, a platform for virtual instruments using DirectX engine technology was being developed by Cakewalk, famous for its Sonar DAW. However, the format did not gain much acceptance beyond instruments bundled with SONAR. Currently, almost all virtual instruments on the market use Steinberg's VSTi format.[citation needed]

VST plugins[edit]

There are three types of VST plugins:

  • VST instruments generate audio. They are generally either Virtual Synthesizers or Virtual samplers. Many recreate the look and sound of famous hardware synthesizers. Better known VST instruments include Discovery, Nexus, Sylenth1, Massive, Omnisphere, FM8, Absynth, Reaktor, Gladiator, Serum and Vanguard.
  • VST effects process rather than generate audio—and perform the same functions as hardware audio processors such as reverbs and phasers. Other monitoring effects provide visual feedback of the input signal without processing the audio. Most hosts allow multiple effects to be chained. Audio monitoring devices such as spectrum analyzers and meters represent audio characteristics (frequency distribution, amplitude, etc.) visually.
  • VST MIDI effects process MIDI messages (for example, transpose or arpeggiate) and route the MIDI data to other VST instruments or to hardware devices.

VST hosts[edit]

A VST host is a software application or hardware device that VST plugins run under. The host application presents the plugin UIs and routes digital audio and MIDI to and from the plugins.

Software[edit]

Many VST hosts are available. Not all of these support VST 3 plugins.

  • Acon Digital Acoustica
  • Acoustica Mixcraft (VST3)
  • Ardour (open source)
  • Audacity (free and open source, VST support works on Windows, Mac OS X and Linux[12])
  • Digital Performer (version 8 or higher)
  • Psycle (open source)
  • Reason (version 9.5 or higher)
  • vMix (VST3 Only)

Stand-alone dedicated hosts provide a host environment for VST plugins rather than use the plugins to extend their own capabilities. These are usually optimized for live performance use, with features like fast song configuration switching.

VST plugins can be hosted in incompatible environments using a translation layer, or shim. For example, FL Studio only supports its own internal plugin architecture, but an available native 'wrapper' loads VST plugins, among others. FXpansion offers a VST-to-RTAS (Real Time AudioSuite) wrapper that lets VST plugins run in Pro Tools, and a VST-to-Audio Units wrapper lets VST plugins run in Logic Pro.

Hardware[edit]

Hardware VST hosts can load special versions of VST plugins. These units are portable and usable without a computer, though some of them require a computer for editing. Other hardware options include PCI/PCIe cards designed for audio processing, which take over audio processing from the computer's CPU and free up RAM.

Some hardware hosts accept VSTs and VSTis, and either run Windows-compatible music applications like Cubase, Live, Pro Tools, Logic etc., or run their own DAW. Other are VST Hosts only and require a separate DAW application. Origin from Arturia is a hardware DSP system that houses several VST software synthesizers in one machine, like Jupiter 50/80 from Roland. Using appropriate software, audio data can also be sent over a network, so the main host runs on one computer, and VST plugins on peripheral machines.

Standard[edit]

The VST plugin standard is the audio plugin standard created by Steinberg to allow any third-party developers to create VST plugins for use within VST host applications. VST requires separate installations for Windows, Mac OS X and Linux. The majority of VST plugins are available for Windows only due to Apple's competing proprietary Audio Unit technology being used on OS X (Audio Units is a core part of the OS X operating system). The short history of commercial environments for Linux means few developers have targeted this platform.

Presets[edit]

What Is A Vst Plugin For Obs Software Free

VST plugins often have many controls, and therefore need a method of managing presets (sets of control settings).

What Is A Vst Plugin For Obs Software Download

Steinberg Cubase VST introduced two file formats for storing presets: an FXP file stores a single preset, while an FXB file stores a whole bank of presets. These formats have since been adopted by many other VST hosts, although Cubase itself switched to a new system of preset management with Cubase 4.0.

Many VST plugins have their own method of loading and saving presets, which do not necessarily use the standard FXP/FXB formats.

Competing technologies[edit]

  • Apple's Audio Units
  • Avid's Avid Audio eXtension
  • Digidesign's Real Time AudioSuite
  • Digidesign's TDM
  • LADSPA, DSSI for Linux
  • LV2, a cross-platform, open source, liberally licensed audio plugin standard
  • Microsoft's DirectX plugin
  • Mark of the Unicorn's Motu Audio System
  • JACK Audio Connection Kit, an open-source sound server allowing flexible audio routing between apps
  • Reason Studios' Rack Extensions

Programming languages[edit]

Software

Steinberg's VST SDK is a set of C++ classes based around an underlying C API. The SDK can be downloaded from their website.

There are several ports available, such as a Delphi version by Frederic Vanmol,[13] a Java version from the jVSTwRapper project at Sourceforge,[14] and two .NET versions – Noise[15] and VST.NET;[16] this open source project also includes a framework that makes creating VST plugins easier and result in more structured code. VST.NET also provides support for writing managed host applications with a managed class that allows loading an unmanaged Plugin. A notable language supporting VST is FAUST, considering that it is especially made for making signal processing plugins, often producing code faster than hand-written C++.

In addition, Steinberg has developed the VST GUI, which is another set of C++ classes, which can be used to build a graphical interface. There are classes for buttons, sliders and displays, etc. Note that these are low-level C++ classes and the look and feel still have to be created by the plugin manufacturer. VST GUI is part of the VST SDK and is also available as a SourceForge project.[17]

Many commercial and open-source VSTs are written using the Juce C++ framework instead of direct calls to the VST SDK because this allows multi-format (VST, Audio Units and Real Time AudioSuite) binaries to be built from a single codebase.

See also[edit]

  • LADSPA and LV2, similar open-source standards.
  • SynthEdit, a VST/VSTi editor.

References[edit]

What Is A Vst Plugin For Obs Software Developer

  1. ^'Our Technologies'. www.steinberg.net.
  2. ^Steinberg Cubase 3 (article), Sound on sound, Jul 1996.
  3. ^ abCubase 3.7 (article), Sound on sound, Sep 1999
  4. ^KVR audio.
  5. ^Steinberg.
  6. ^'vestige.h'.
  7. ^'aeffectx.h'.
  8. ^News, KVR audio.
  9. ^VST 3.5 a milestone in VST development (News), Steinberg, 2011-02-10.
  10. ^'Celemony introduces ARA Audio Random Access - Extension for Plug-in Interfaces'. KVR Audio. Retrieved 2018-06-05.
  11. ^SDK for VST 2 software interface discontinued (News), Steinberg, 2013-12-09
  12. ^VST plug-ins
  13. ^VST, Axi world.
  14. ^jVSTwRapper, Source forge.
  15. ^Noise, Google code.
  16. ^VST.Net, Codeplex.
  17. ^http://sourceforge.net/projects/vstgui
Retrieved from 'https://en.wikipedia.org/w/index.php?title=Virtual_Studio_Technology&oldid=989584235'

The Case for Noise Reduction

For the last 10+ years, I’ve been producing video training materials on IT systems automation, cloud, containers, and software development. Over the course of these years, I’ve learned many techniques about how to improve both video and audio quality. In fact, I wrote an article about key techniques to produce a great video. One of the techniques I’ve picked up more recently is noise reduction.

No matter what type of microphone you’re using, there were always be background noise. This is well-known as the “self-noise” of a microphone. There are other types of noise besides the internal electronic noise, however.

As a listener, you don’t always realize the amount of effort that goes into producing high quality audio. Listeners hear background noises, wet-mouth, and heavy breathing, but otherwise expect a crisp listening experience.

Some common examples of background noises include:

  • The constant hum of a fan
  • Wind whipping against the window
  • Cars driving past the house or office
  • Birds chirping outside
  • Air blowing through HVAC vents

For the past several months, I have been using Open Broadcaster Studio (OBS), to create video recordings. OBS offers a variety of built-in filters for both audio and video streams. These built-in filters include a “Noise Reduction” filter. However, the built-in noise reduction plug-in only does a so-so job.

A Working Noise Reduction Solution

What can we do to solve this problem?

There’s a professional digital audio workstation (DAW) package called REAPER. REAPER itself has a license cost, but the company offers a free plug-in set. ReaPlugs are built on the standard Virtual Studio Technology (VST) interface, which processes audio in the pipeline.

For now, go ahead and download ReaPlugs and install the package on your system. OBS should automatically pick up these plug-ins when you add a VST filter.

One of the VST plug-ins included in ReaPlugs is called ReaFIR. ReaFIR lets you record a noise profile and then apply it in real-time. In fact, you can add the plug-in to your audio filters multiple times, and pre-record different noise profiles. That way, depending on what noises are in your environment, you can enable or disable them at will.

Add ReaFIR to your audio input

Now let’s add the ReaFIR plug-in to your OBS configuration.

Right-click your audio input in OBS and select the Filters option. On the bottom-left of the Filters screen, click the plus sign. Choose the VST 2.x Plug-in option.

  1. You can type any desired name for the plug-in, such as “Box Fan Noise Reduction”
  2. From the drop-down box, select the reafir_standalone plug-in
  3. Click the Open Plug-in Interface button to configure ReaFIR
  4. From the Mode drop-down, choose Subtract
  5. Check the box Automatically build noise profile
  6. Let the background noise build the profile for a few seconds
  7. Uncheck the box and close the window. You’re done!

Now that you’ve completed the configuration of ReaFIR, give it a try. Recording a new video clip and see how well the noise reduction works. You should notice a significant improvement in the clarity of your voice!

Example Noise Reduction Profiles

What Is A Vst Plugin For Obs Software Windows 10

Now that you understand how to solve noise reduction, let’s explore some common examples of noise profiles.

Desktop Computer

Although I prefer having a silent desktop computer, a high-performance computer will generate heat. Between the CPU and GPU fans, my media production machine creates a little noise. The red line indicates the noise profile that is built by ReaFIR.

Box Fan

I have a box fan that I sometimes use to eject heat from my office. This is a fairly inexpensive, noisy, yet effective unit. The box fan’s noise profile covers a much wider frequency range than the desktop computer fan. Although the highest decibel level is around 100Hz, it ranges all the way up to 10kHz.

Keyboard Typing

Although every keyboard will have a unique noise profile, I’m using the Microsoft Sidewinder X4. While typing a few words, this is what its noise profile looks like. As you can see, the high points are around 45Hz and a range from 400Hz to 10kHz.

Conclusion

By using the techniques in this article, you should notice a drastic benefit to your audio quality. I hope this helped you to understand how to employ noise reduction in OBS. Please check out some of the articles on my website, and leave a comment with your feedback!
